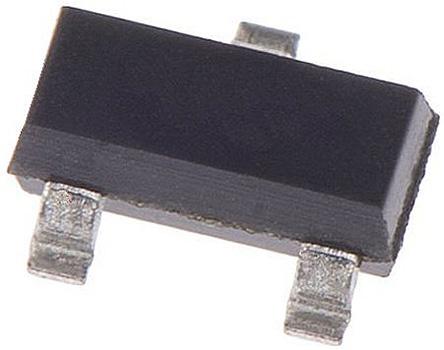

mmbta14lt1g onsemi MMBTA14LT1G Dual NPN Darlington Transistor, 300 mA 30 V HFE:5000, 3-Pin SOT-23
mmbta14lt1g onsemi MMBTA14LT1G Dual NPN Darlington Transistor, 300 mA 30 V HFE:5000, 3-Pin SOT-23

onsemi MMBTA14LT1G Dual NPN Darlington Transistor, 300 mA 30 V HFE:5000, 3-Pin SOT-23

onsemi MMBTA14LT1G Dual NPN Darlington Transistor, 300 mA 30 V HFE:5000, 3-Pin SOT-23

Manufacturer:
onsemi
Manufacturer Part No:
MMBTA14LT1G
Enrgtech Part No:
ET21465638
Warranty:
Manufacturer
SAR 0.01 SAR 0.01
Checking for live stock
Transistor Type:
NPN
Maximum Continuous Collector Current:
300 mA
Maximum Collector Emitter Voltage:
30 V
Maximum Emitter Base Voltage:
10 V
Package Type:
SOT-23
Mounting Type:
Surface Mount
Pin Count:
3
Transistor Configuration:
Single
Number of Elements per Chip:
2
Minimum DC Current Gain:
5000
Maximum Collector Base Voltage:
30 V
Maximum Collector Emitter Saturation Voltage:
1.5 V
Maximum Collector Cut-off Current:
100nA
Height:
1.01mm
Width:
1.4mm
Maximum Power Dissipation:
300 mW
Maximum Operating Temperature:
+150 °C
Dimensions:
3.04 x 1.4 x 1.01mm
Minimum Operating Temperature:
-55 °C
Length:
3.04mm
Offset Voltage:
12 μV
Product Type:
Current Sensor IC
Package Type:
SO-8
Current Rating:
40 μA
Bandwidth:
375kHz
Pin Count:
8
Mount Type:
Surface
Minimum Supply Voltage:
1.8V
Maximum Supply Voltage:
5.5V
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
125°C
Standards/Approvals:
RoHS
Length:
2mm
Width:
1.25 mm
Series:
TSL690
Height:
1.1mm
Automotive Standard:
AEC-Q100
pdf icon
0900766b81574f3b.pdf(datasheets)
pdf icon
0900766b81644fae.pdf(datasheets)
Explore Darlington pairs for high-gain switching needs. Enrgtech offers power transistors ideal for amplifiers, controllers, and voltage regulation circuits.
