Transistor Type:
NPN
Maximum Continuous Collector Current:
2 A
Maximum Collector Emitter Voltage:
140 V
Maximum Emitter Base Voltage:
160 V

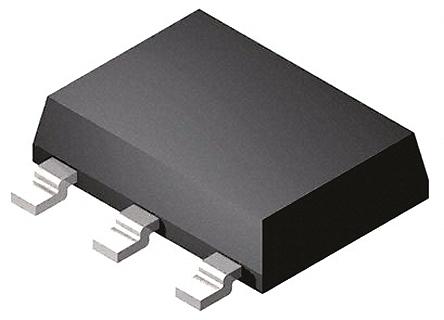

Package Type:
SOT-223
Mounting Type:
Surface Mount
Pin Count:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1660664&DisplayLogo=False
Transistor Configuration:
Single
Number of Elements per Chip:
1
Minimum DC Current Gain:
10000
Maximum Base Emitter Saturation Voltage:
170363
Maximum Collector Base Voltage:
160 V
Maximum Collector Emitter Saturation Voltage:
1.2 V
Maximum Collector Cut-off Current:
10µA
Width:
3.55mm
Dimensions:
6.55 x 3.55 x 1.65mm
Height:
1.65mm
Maximum Operating Temperature:
+150 °C
Maximum Power Dissipation:
2 W
Length:
6.55mm
Minimum Operating Temperature:
-55 °C
