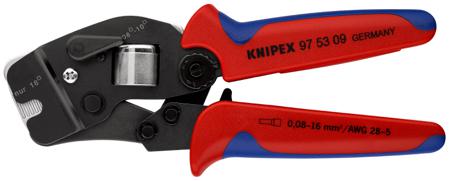

Automatic crimping tool for wire end ferrules from 0.08 to 16mm² with front access Features and benefits - For crimping wire end ferrules according to DIN 46228 Part 1 + 4
- Automatic adjustment to the desired ferrule size: no crimping errors due to using the wrong profile
- End sleeves are inserted into the pliers from the front
- Very comfortable to use thanks to its practical shape and light weight - in one profile
- With lever for setting the crimping range from 0.08 to 10 or 16.0 mm².
- Particularly suitable for all twin conductor ferrules up to 2 x 6 mm² or 2 x AWG 8
- High-quality repeat crimping thanks to integrated locking (automatic release mechanism)
- Crimping pressure precisely defined (calibrated) at the factory, also adjustable
- Optimum force transmission through lever for fatigue-reduced operation
- Low weight
- Compact design
- Ergonomic handles
- Capacities mm² / AWG : crimps from 0.08 to 10.0 mm² and 16.0 mm² or AWG 28 to 5
- Material: special grade chrome vanadium electrical steel, oil quenched Typical applications Crimping pliers can be used in many applications:
- Maintenance and repair
- Electrical installations
- Crimp shop Product Maintenance - To maintain proper operation and long service life, the shafts and other moving parts should be lubricated regularly.
- Lubrication* is recommended at least every 10,000 cycles when the tool is exposed to dirt or other contaminants.
- The setting of the crimping die ranges should also be checked. - Adjustment of the pressure setting pin is necessary when the tool preload decreases significantly.

*Use a light non-mineral oil
