Absolute Maximum AC Current Measurement:
400A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
4000MΩ
Model Number:

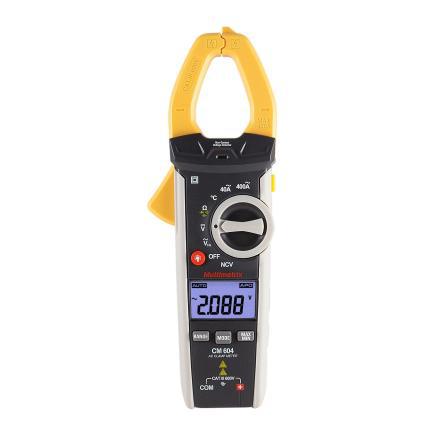

CM604
AC Current Measurement Resolution:
10mA
Clamp Meter Type:
AC Current Clamp Meter
Best AC Current Accuracy:
±(2.5% + 10 pt)
Best AC Voltage Accuracy:
±(1.2% + 5 pt)
Best DC Voltage Accuracy:
±(0.5% + 8 pt)
True RMS:
Yes
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Resistance Measurement Resolution:
0.1Ω
Best Temperature Measurement Accuracy:
1.5% + 5°C
DC Voltage Measurement Resolution:
0.1mV
Dimensions:
75 x 35 x 225mm
Best Resistance Measurement Accuracy:
1.2%L + 5 pts
Safety Category:
CAT III 600V
Absolute Maximum Temperature Measurement:
1000°C
Battery Type:
AAA 1.5 V
Safety Category Voltage:
600V
Temperature Measurement Resolution:
1°C
Safety Category Level:
CAT III
Weight:
295g
Maximum Conductor Size:
30mm
AC Voltage Measurement Range:
600 V
AC Current Measurement Range:
400 A
AC Voltage Measurement Resolution:
1mV
Minimum Operating Temperature:
5°C
Height:
35mm
Length:
225mm
Width:
75mm
Maximum Operating Temperature:
40°C
Display Type:
Backlit LCD
Non-Contact Voltage Detector:
Yes
Power Source:
Battery
