Absolute Maximum AC Current Measurement:
400A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
20MΩ
Model Number:
RS380
Calibrated:
RSCAL
AC Current Measurement Resolution:
0.01A

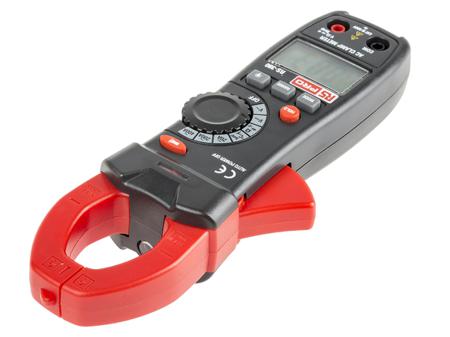

Clamp Meter Type:
AC Current Clamp Meter
Best AC Current Accuracy:
±2.5% ± 5 Digits
Best AC Voltage Accuracy:
±1.5% ± 10 Digits
Jaw Capacity Busbars:
30mm
Functions Measured:
AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance, Temperature
True RMS:
Yes
Best DC Voltage Accuracy:
±1.5% ± 2 Digits
Length:
82mm
Resistance Measurement Resolution:
100mΩ
Dimensions:
82 x 40 x 230mm
DC Voltage Measurement Resolution:
0.1mV dc
Best Temperature Measurement Accuracy:
±3% ± 5 Digits
Width:
40mm
Temperature Measurement Resolution:
1 °C, 1 °F
Maximum Operating Temperature:
+40°C
Display Type:
LCD
Best Resistance Measurement Accuracy:
±1% ± 4 Digits
Safety Category:
CAT III 600 V
Safety Category Level:
CAT III
Weight:
230g
AC Voltage Measurement Resolution:
0.1mV ac
Height:
230mm
Minimum Operating Temperature:
+5°C
Absolute Maximum Temperature Measurement:
+1400 °F, +760°C
Safety Category Voltage:
600V
Battery Type:
AAA
Power Source:
Battery
Non-Contact Voltage Detector:
Yes
