Absolute Maximum AC Current Measurement:
80A ac
Absolute Maximum DC Current Measurement:
80A dc
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
40MΩ
Calibrated:
UKAS
AC Current Measurement Resolution:
1mA
DC Current Measurement Resolution:
1mA
Best DC Current Accuracy:
±2.5 %

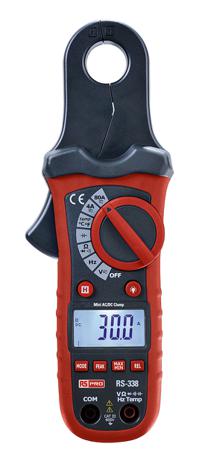

Clamp Meter Type:
Mini AC/DC Clamp Meter
Best AC Current Accuracy:
±2.5 %
Best AC Voltage Accuracy:
±2 %
True RMS:
Yes
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature
Best DC Voltage Accuracy:
±1.5 %
Jaw Capacity Busbars:
20mm
Display Type:
Backlight
Best Resistance Measurement Accuracy:
±1.5 %
Safety Category:
CAT III 600V
Absolute Maximum Temperature Measurement:
+760°C
Battery Type:
9V
Safety Category Voltage:
600V
Temperature Measurement Resolution:
0.1°C
Safety Category Level:
CAT III
Weight:
200g
AC Voltage Measurement Resolution:
0.1mV
Best Temperature Measurement Accuracy:
±2 °C
DC Voltage Measurement Resolution:
0.1mV
Height:
210mm
Resistance Measurement Resolution:
100mΩ
Length:
70mm
Width:
37mm
Power Source:
Battery
Dimensions:
70 x 37 x 210mm
