Absolute Maximum AC Current Measurement:
600A ac
Absolute Maximum DC Current Measurement:
600A dc
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
400Ω

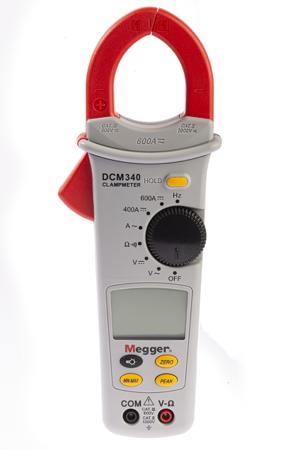

Model Number:
DCM340
Best DC Current Accuracy:
±(1.9% rdg + 5dgts)
Clamp Meter Type:
AC/DC Clamp Meter
Best AC Current Accuracy:
±(1.9% rdg + 5dgts)
Best AC Voltage Accuracy:
±(1% rdg + 5dgts)
Best DC Voltage Accuracy:
±(0.7% rdg + 2dgts)
Functions Measured:
AC Current, DC Current
Jaw Capacity Busbars:
35mm
Resistance Measurement Resolution:
0 → 400Ω
Glove Type:
0 → 600 A
Dimensions:
68 x 42 x 237mm
DC Voltage Measurement Resolution:
0 → 600V
Best Temperature Measurement Accuracy:
>80 %
Minimum Operating Temperature:
0°C
Height:
237mm
Length:
68mm
Width:
42mm
Power Source:
Battery
Battery Type:
9 V Alkaline
Maximum Conductor Size:
35mm
Safety Category Level:
CAT III
Weight:
225g
Battery Life:
200 h
Maximum Operating Temperature:
+50°C
Display Type:
LCD
Best Resistance Measurement Accuracy:
±1% ±3 Digits
Safety Category:
CAT III 600V
Absolute Maximum Temperature Measurement:
+50°C
Safety Category Voltage:
600V
