Absolute Maximum AC Current Measurement:
60A ac
Absolute Maximum AC Voltage Measurement:
300V ac
Absolute Maximum DC Voltage Measurement:
300V dc
Absolute Maximum Resistance Measurement:
600kΩ
Model Number:

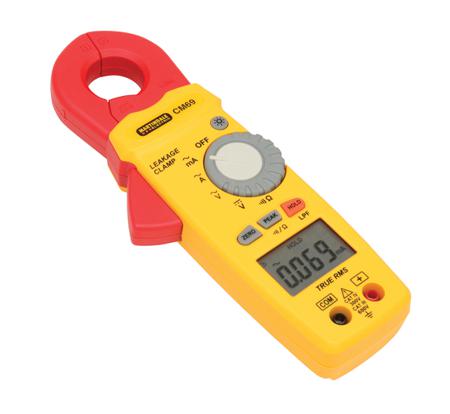

CM69
AC Current Measurement Resolution:
1µA
Clamp Meter Type:
Leakage Clamp Meter
Best AC Current Accuracy:
±(1% rdg + 5dgts)
Best AC Voltage Accuracy:
±(1% rdg + 3dgts)
True RMS:
Yes
Functions Measured:
AC Current, AC Voltage, Continuity, DC Voltage, Resistance
Best DC Voltage Accuracy:
±(1% rdg + 2dgts)
Jaw Capacity Busbars:
20mm
Best Resistance Measurement Accuracy:
1 % + 2 Digits
Safety Category:
CAT II 1000 V, CAT III 1000 V, CAT III 600 V, CAT IV 300 V, CAT IV 600V
Safety Category Level:
CAT II, CAT III, CAT IV
Weight:
262g
Battery Type:
1.5 V, AAA, Alkaline
Safety Category Voltage:
300 V, 600 V, 1000V
Battery Life:
40 h @ AC, 60 h @ DC
Maximum Conductor Size:
20mm
AC Voltage Measurement Resolution:
10mV
DC Voltage Measurement Resolution:
10mV
Dimensions:
206 x 76 x 33.5mm
Height:
33.5mm
Display Type:
Backlit LCD
Resistance Measurement Resolution:
100mΩ
Length:
206mm
Width:
76mm
Power Source:
Battery
Maximum Operating Temperature:
+40°C
Minimum Operating Temperature:
0°C
