Absolute Maximum AC Current Measurement:
600A ac
Absolute Maximum DC Current Measurement:
200µA dc
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
6mΩ
Model Number:

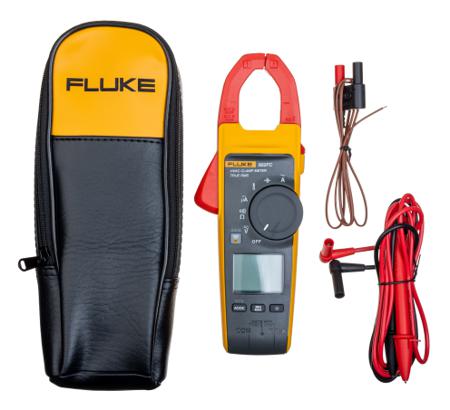

902 FC
Moulded/Fold Flat:
Wi-Fi
AC Current Measurement Resolution:
10mA
DC Current Measurement Resolution:
0.1µA
Best DC Current Accuracy:
±1% + 5 Digits
Clamp Meter Type:
HVAC Clamp Meter
Best AC Current Accuracy:
±2% +5 Digits
Best AC Voltage Accuracy:
±1.5 % + 5 Digits
True RMS:
Yes
Best DC Voltage Accuracy:
±1% +5 Digits
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Resistance, Temperature
Height:
230mm
Length:
45.4mm
Maximum Operating Temperature:
+50°C
Battery Type:
AA
Safety Category Voltage:
600V
Absolute Maximum Temperature Measurement:
+400°C
DC Voltage Measurement Resolution:
100mV
Resistance Measurement Resolution:
1Ω
Width:
83.7mm
Best Resistance Measurement Accuracy:
1 % ± 5 Digits
Safety Category:
CAT III 600V
Display Type:
LCD
Best Temperature Measurement Accuracy:
1 % ± 8 Digits
Glove Type:
200 μA
Dimensions:
230 x 83.7 x 45.4mm
Power Source:
Battery
Minimum Operating Temperature:
-10°C
AC Voltage Measurement Range:
600 V
AC Voltage Measurement Resolution:
100mV
AC Current Measurement Range:
600 A
Battery Life:
0.25
Safety Category Level:
CAT III
Weight:
419g
Temperature Measurement Resolution:
0.1°C
