Absolute Maximum AC Current Measurement:
600A ac
Absolute Maximum DC Current Measurement:
900A dc
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
59.99W
Model Number:

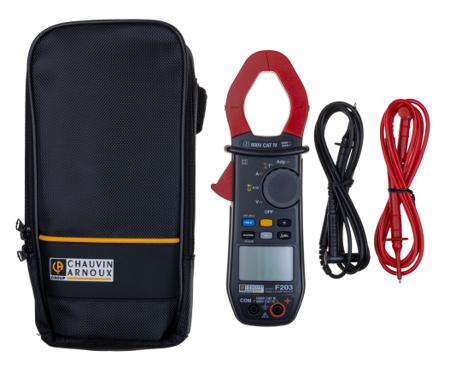

F203
Calibrated:
RSCAL
AC Current Measurement Resolution:
0.01A
DC Current Measurement Resolution:
0.01A
Best DC Current Accuracy:
±1% + 3 Digits
Clamp Meter Type:
AC/DC Clamp Meter
Best AC Current Accuracy:
±1% +3 digits
Best AC Voltage Accuracy:
±1% + 3 Digits
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Best DC Voltage Accuracy:
±1% + 3 Digits
True RMS:
Yes
Jaw Capacity Busbars:
34mm
Temperature Measurement Resolution:
0.1°C
Battery Life:
130 h
Dimensions:
78 x 42 x 222mm
Safety Category Voltage:
600V
Safety Category Level:
CAT IV
Weight:
340g
DC Voltage Measurement Resolution:
0.01V
Length:
78mm
Absolute Maximum Temperature Measurement:
+1000°C
Resistance Measurement Resolution:
100mΩ
Width:
42mm
Power Source:
Battery
Battery Type:
9V 6LR61
Display Type:
Backlit LCD
Safety Category:
CAT III 1000 V, CAT IV 600V
AC Voltage Measurement Resolution:
0.01V
Maximum Conductor Size:
34mm
Minimum Operating Temperature:
-20°C
Height:
222mm
Maximum Operating Temperature:
+55°C
