Absolute Maximum AC Current Measurement:
2500A ac
Absolute Maximum DC Current Measurement:
999.9A dc
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Model Number:

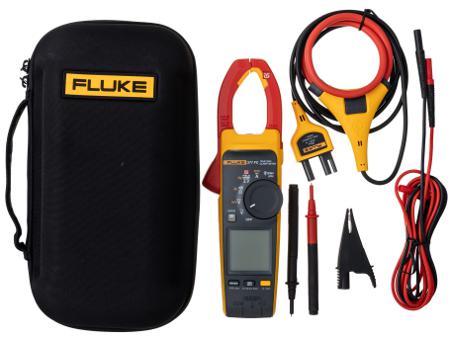

377 FC
Calibrated:
RSCAL
AC Current Measurement Resolution:
0.1A
DC Current Measurement Resolution:
0.1A
Best DC Current Accuracy:
2 % ± 5 Digits
Clamp Meter Type:
AC/DC Clamp Meter
Best AC Current Accuracy:
3 % ± 5 Digits
Best AC Voltage Accuracy:
5 % ± 5 Digits
True RMS:
Yes
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Best DC Voltage Accuracy:
1 % ± 5 Digits
Safety Category Voltage:
600 V, 1000V
Dimensions:
274 x 86 x 47mm
Glove Type:
999.9 A
DC Voltage Measurement Resolution:
1V
Length:
274mm
Power Source:
Battery
Width:
86mm
Non-Contact Voltage Detector:
Yes
Battery Type:
AA
Display Type:
LCD
Safety Category:
CAT III 1000 V, CAT IV 600V
AC Voltage Measurement Resolution:
1V
AC Voltage Measurement Range:
1000 V
AC Current Measurement Range:
999.9 A
Minimum Operating Temperature:
-10°C
Height:
47mm
Weight:
363g
Safety Category Level:
CAT III, CAT IV
Battery Life:
200 h
Maximum Operating Temperature:
+50°C
