Absolute Maximum AC Current Measurement:
2000A ac
Absolute Maximum DC Current Measurement:
2000A dc
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
400kΩ
Model Number:

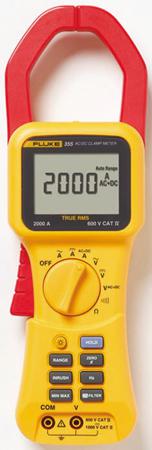

355
Calibrated:
RSCAL
AC Current Measurement Resolution:
10mA
DC Current Measurement Resolution:
10mA
Best DC Current Accuracy:
±1.5% +15 Digits
Clamp Meter Type:
AC/DC Clamp Meter
Best AC Current Accuracy:
±3.5% +5 digits
Best AC Voltage Accuracy:
±3% +5 Digits
Best DC Voltage Accuracy:
±1% +10 Digits
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Frequency, Resistance
True RMS:
Yes
Jaw Capacity Busbars:
58mm
Maximum Conductor Size:
58mm
Safety Category Level:
CAT IV, CAT III
Weight:
814g
Battery Life:
100 h
Maximum Operating Temperature:
+50°C
AC Current Measurement Range:
40 A, 400 A, 2000 A, 1400 A
Minimum Operating Temperature:
0°C
Dimensions:
300 x 98 x 52mm
Glove Type:
40/400/2000/1400 A
Width:
98mm
Display Type:
LCD
Best Resistance Measurement Accuracy:
±1.5% +5 Digits
AC Voltage Measurement Range:
4 V, 40 V, 400 V, 600 V
DC Voltage Measurement Resolution:
1mV
Resistance Measurement Resolution:
100mΩ
Length:
300mm
Power Source:
Battery
Safety Category:
CAT III 1000 V, CAT IV 600V
AC Voltage Measurement Resolution:
1mV
Battery Type:
AA
Safety Category Voltage:
600 V, 1000V
Height:
52mm
