Absolute Maximum AC Current Measurement:
2500A ac
Absolute Maximum DC Current Measurement:
999.9A dc
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
60kΩ
Moulded/Fold Flat:
Bluetooth
Model Number:

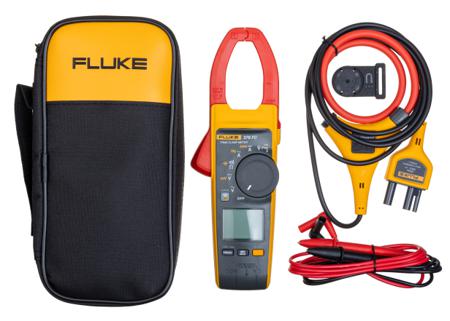

376 FC
Calibrated:
UKAS
AC Current Measurement Resolution:
0.1 (Jaw) A ac, 1 (Probe) A ac
DC Current Measurement Resolution:
0.1A
Best DC Current Accuracy:
2% ±5 Digits
Clamp Meter Type:
AC-DC Flexible Clamp Meter
Best AC Current Accuracy:
2% ±5 Digits (Jaw), 3% ±5 (Probe)
Best AC Voltage Accuracy:
1.5% ±5 Digits
True RMS:
Yes
Jaw Capacity Busbars:
34mm
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Best DC Voltage Accuracy:
1% ±5 Digits
AC Current Measurement Range:
2.5 kA, 999.9 A
AC Voltage Measurement Range:
1000 V
AC Voltage Measurement Resolution:
0,1 V (≤600 V), 1 V (≤1000 V)V ac
Safety Category Voltage:
600 V, 1000V
Best Resistance Measurement Accuracy:
1% ±5 Digits
Safety Category:
CAT III 1000 V, CAT IV 600V
Display Type:
Backlit LCD
Maximum Operating Temperature:
+50°C
Battery Type:
2 AA, IEC LR6, NEDA 15A
Resistance Measurement Resolution:
0,1 Ω (≤600 Ω), 1 Ω (≤6000 Ω), 10 Ω (≤60 kΩ)Ω
Width:
85mm
Power Source:
Battery
Length:
249mm
Dimensions:
249 x 85 x 45mm
DC Voltage Measurement Resolution:
0,1 V (≤600 V), 1 V (≤1000 V)V dc
Safety Category Level:
CAT III, CAT IV
Weight:
395g
Height:
45mm
Minimum Operating Temperature:
-10°C
