Absolute Maximum AC Current Measurement:
1500A ac
Absolute Maximum DC Current Measurement:
1500A dc
Absolute Maximum AC Voltage Measurement:
1500V ac
Absolute Maximum DC Voltage Measurement:
2000V dc
Model Number:

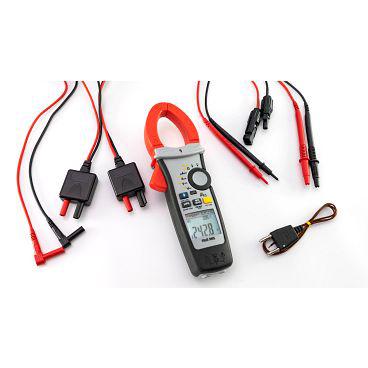

DCM1500S
AC Current Measurement Resolution:
0.1A
DC Current Measurement Resolution:
100000µA
Best DC Current Accuracy:
±(2.0% + 5d)
Clamp Meter Type:
Solar Clamp Meter
Best AC Current Accuracy:
±(2.0% + 5d)
Best AC Voltage Accuracy:
±(1.0% + 5d)
Best DC Voltage Accuracy:
±(0.7% + 2d)
True RMS:
Yes
Temperature Measurement Resolution:
0.1°C
Safety Category Voltage:
8000V
Battery Type:
LR6 1.5V
Absolute Maximum Temperature Measurement:
+400°C
Best Resistance Measurement Accuracy:
± (0.9 % + 5 Digits)
Safety Category:
CAT CAT III, CAT IV
Best Temperature Measurement Accuracy:
±(1% + 20d/36d)
Minimum Operating Temperature:
-10°C
Height:
51mm
Power Source:
Battery
Non-Contact Voltage Detector:
Yes
Width:
88mm
Length:
254mm
Resistance Measurement Resolution:
100mΩ
Glove Type:
60 → 1500 A
Dimensions:
254 x 88 x 51mm
Maximum Operating Temperature:
+50°C
DC Voltage Measurement Resolution:
0.1V dc
Display Type:
LCD
Safety Category Level:
CAT III, CAT IV
Weight:
470g
Battery Life:
100 h
Maximum Conductor Size:
42mm
AC Voltage Measurement Resolution:
0.1V ac
AC Current Measurement Range:
60 → 1500 A
AC Voltage Measurement Range:
80 → 1000 V
