Absolute Maximum AC Current Measurement:
400A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
400Ω

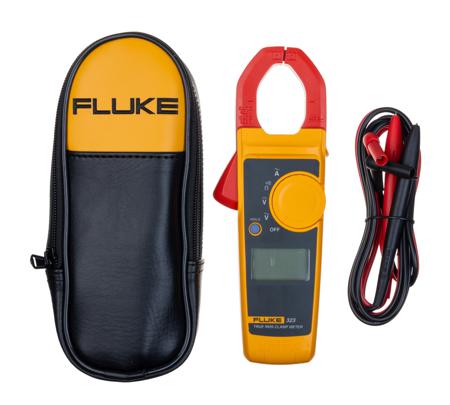

Model Number:
323
Calibrated:
UKAS
AC Current Measurement Resolution:
100mA
Clamp Meter Type:
AC Current Clamp Meter
Best AC Current Accuracy:
±2% +5 digits
Best AC Voltage Accuracy:
±1% +5 Digits
True RMS:
Yes
Jaw Capacity Busbars:
30mm
Functions Measured:
AC Current, AC Voltage, Continuity, DC Voltage, Resistance
Height:
34mm
Weight:
265g
Safety Category Level:
CAT III, CAT IV
Length:
207mm
DC Voltage Measurement Resolution:
100mV
Dimensions:
207 x 75 x 34mm
Battery Type:
AAA
Power Source:
Battery
Resistance Measurement Resolution:
100mΩ
Width:
75mm
Safety Category Voltage:
300 V, 600V
Maximum Operating Temperature:
+50°C
Display Type:
LCD
Safety Category:
CAT III 600 V, CAT IV 300V
AC Voltage Measurement Resolution:
100mV
Maximum Conductor Size:
30mm
AC Voltage Measurement Range:
600 V
Minimum Operating Temperature:
-10°C
AC Current Measurement Range:
400 A
