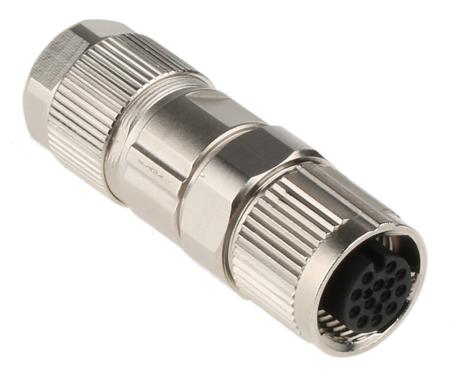

CONN RCPT FMALE 12POS PIERCE

Phoenix Contact 1559631

Manufacturer:
Phoenix Contact
Manufacturer Part No:
1559631
Enrgtech Part No:
ET12232509
Warranty:
Manufacturer
SAR 349.15
Checking for live stock
Current Rating:
1.5A
Housing Material:
Zinc
Shell Size:
M12
Outer Diameter:
8.2mm
Voltage Rating:
30 V
Plug/Socket:
Socket
Contact Plating:
Gold over Nickel
Termination Method:
Quick Connect
Shielded/Unshielded:
Unshielded
Maximum Operating Temperature:
+85°C
IP Rating:
IP67
Body Orientation:
Straight
Contact Gender:
Female
Connector Size:
M12
Mating Type:
A Coded
Mounting Type:
Cable Mount
Series:
SACC
Coding:
A
Minimum Operating Temperature:
-25°C
Number of Contacts:
12
Contact Material:
Brass
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Voltage Rating:
30VAC/DC
Mounting Feature:
-
Operating Temperature:
-25°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
12
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Zinc Die Cast, Nickel
Shielding:
-
Cable Opening:
0.213" ~ 0.323" (5.40mm ~ 8.20mm)
Shell Material:
Zinc Die Cast
REACH Status:
REACH Unaffected
Current Rating (Amps):
1.5A
Applications:
-
Primary Material:
Metal
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Shell Size - Insert:
M12-12
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Twist
Termination:
Axial Pierce
standardLeadTime:
8 Weeks
Insert Material:
Polyamide (PA), Nylon
Orientation:
A
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Backshell, Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Nickel
Color:
Silver
Series:
SACC
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Zinc
ECCN:
EAR99
pdf icon
1559631 Instructions(Technical Reference)
pdf icon
Datasheet 1559631(Technical Reference)
