1515170 Phoenix Contact
1515170 Phoenix Contact
1515170 Phoenix Contact

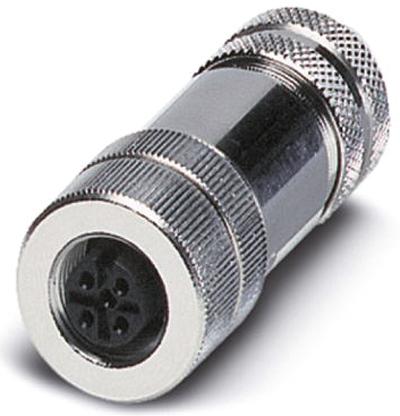

CONN RCPT FMALE 4POS GOLD SCREW

Phoenix Contact 1515170

Manufacturer:
Phoenix Contact
Manufacturer Part No:
1515170
Enrgtech Part No:
ET11423060
Warranty:
Manufacturer
SAR 216.47
Checking for live stock
Current Rating:
4.0A
Mating Type:
D Coded
Mounting Type:
Cable Mount
IP Rating:
IP67
Series:
SACC
Body Orientation:
Straight
Voltage Rating:
60.0 V
Coding:
A
Contact Gender:
Female
Termination Method:
Solder
Housing Material:
Zinc
Plug/Socket:
Socket
Connector Size:
M12
Contact Plating:
Gold
Shell Size:
M12
Number of Contacts:
4
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40°C
Contact Material:
Brass
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Operating Temperature:
-40°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
4
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Zinc Die Cast, Nickel
Shielding:
Shielded
Cable Opening:
0.236" ~ 0.315" (6.00mm ~ 8.00mm)
title:
1515170
Shell Material:
Zinc Die Cast
REACH Status:
REACH Affected
Current Rating (Amps):
4A
Applications:
-
Primary Material:
Metal
Material Flammability Rating:
UL94 HB
Voltage Rating:
48VAC, 60VDC
Shell Size - Insert:
M12-4
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
Termination:
Screw
standardLeadTime:
8 Weeks
Insert Material:
Polyamide (PA), Nylon
Orientation:
A
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Backshell, Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Nickel
Color:
Silver
Series:
SACC
Packaging:
Bulk
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Zinc
ECCN:
EAR99
pdf icon
Connector - SACC-M12FS-4CON-PG 9-SH - 1515170(Technical Reference)
pdf icon
1515170(Datasheets)
pdf icon
Design chg 27/JUN/2022(PCN Design/Specification)
pdf icon
M12 Connectors Flats 15/Feb/2016(PCN Design/Specification)
