Chart Type:
Graphical
Number of Inputs:
8
Parameter Measured:
Current, Frequency Input, Pulse Input, RTD, Thermocouple, Voltage
Maximum Temperature Measurement:
2315 °C
Number of Outputs:
6
Maximum Current Measurement:
20mA
Maximum Operating Voltage:
27.6 Vdc
Maximum Voltage Measurement:
10V
Model Number p:

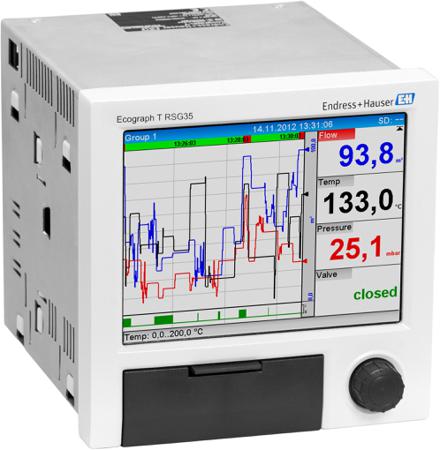

RSG35-C2A
IP Rating:
IP65
Best Temperature Measurement Accuracy:
±0.1% oMR
Temperature Measurement Resolution:
1 s
Best Current Measurement Accuracy:
±0.1% oMR
Power Source:
A, Frequency Input, Pulse Input, RTD, Thermocouple, V
Width:
144mm
Height:
144mm
Current Measurement Resolution:
100 ms
Weight:
2.2kg
Battery Life:
10 years
Minimum Operating Voltage:
21.6 Vdc
Best Voltage Measurement Accuracy:
±0.1% oMR
Battery Type:
Lithium 3V 1/2AA
Voltage Measurement Resolution:
100 ms
Best Resistance Measurement Accuracy:
±0.1% oMR
Length:
192mm
