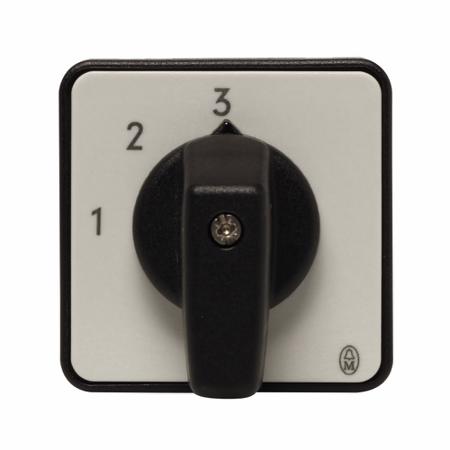

Eaton , SP 3 Position 45° Multi Step Cam Switch, 690V ac, 20A, Toggle Actuator

Manufacturer:

Manufacturer Part No:

78627334 T0-2-8230/E/EZ-P1(RS257-9637)

Enrgtech Part No:

ET22733148

Warranty:

Manufacturer

SAR 34.49

Checking for live stock

Cam Switch Type:

Multi Step Cam Switch

Pole and Throw Configuration:

Maximum Current:

20A

Maximum Voltage:

690V ac

Number of Positions:

Terminal Type:

Screw

Angle of Throw:

45°

Length:

48mm

Width:

48mm

Depth:

100mm

Actuator Type:

Toggle

Dimensions:

48 x 48 x 100mm

0900766b80084def.pdf(datasheets)

0900766b811cf88a.pdf(datasheets)

0900766b81368555.pdf(datasheets)

A700000008642771.pdf(datasheets)
