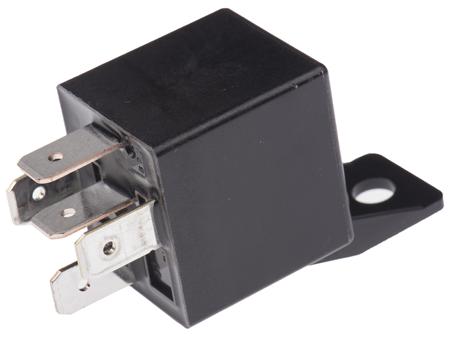

Panasonic PCB Mount Automotive Relay, 24V dc Coil Voltage, 20A Switching Current, SPDT

Panasonic PCB Mount Automotive Relay, 24V dc Coil Voltage, 20A Switching Current, SPDT

Manufacturer:
Manufacturer Part No:
CB1-M-24V
Enrgtech Part No:
ET13944394
Warranty:
Manufacturer
SAR 6.20 SAR 6.20
Checking for live stock
Coil Voltage:
24V dc
Coil Power:
1.8W
Coil Resistance:
320Ω
Contact Configuration:
SPDT
Number of Poles:
1
Switching Current:
20A
Maximum Switching Voltage DC:
28V
Mounting Type:
PCB Mount
Terminal Type:
Quick Connect
Depth:
22mm
Contact Material:
Silver Alloy
Life:
50000 Operations
Isolation Coil To Contact:
500V rms
Height:
25mm
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40°C
Length:
26mm
pdf icon
0900766b80e3105f.pdf(datasheets)
