Adapter Type:

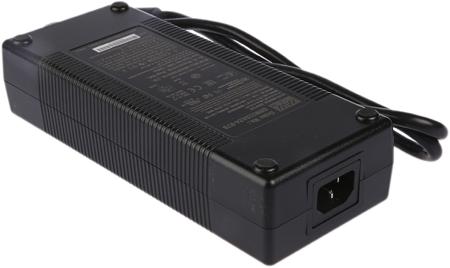

Power Brick Adapter
Output Voltage:
12V dc
Input Voltage:
90 → 264V ac
Output Current:
0 → 15A
Maximum Temperature:
+70°C
Output Connector:
4-Pin Power DIN
Input Connector:
IEC 320-C14
Number of Outputs:
1
Power Rating:
180W
Cable Length:
1000mm
Medical Approved:
Yes
MTBF:
208.66kh
Better World Verification:
UL Energy Verified
Standards Met:
AU/NZ MEPS, CE, CoC Version 5, cUL, cULus Recognised, EISA 2007/DOE, EN 55011 Class B, EN 55024, EN 60601-1-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61204-3, EU ErP, FCC PART 15 Class B, MIL-HDBK-217F, NRCan, PFC, TUV Rheinland EN 60601-1, TUV Rheinland IEC 60601-1
Better World Product:
Yes
Load Regulation:
±5%
Minimum Temperature:
-30°C
Maximum Reset Active Time:
±1%
Length:
210mm
Series:
GSM220A
Width:
85mm
Depth:
46mm
Energy Efficiency Level:
VI
